Introducing Thunderhead Balloon systems.
People and groups can purchase the services of these balloons that can be used to spy on any place in the world and currently zero defense to these when high enough above the stratosphere that has zero security regulations.
Thunderhead Balloon Systems are advanced stratospheric platforms developed by Aerostar, a company based in Sioux Falls, South Dakota, with over 65 years of expertise in lighter-than-air technologies.
These systems are designed for long-duration, navigational missions in the stratosphere, offering a cost-effective alternative to traditional platforms like satellites or aircraft. Below is a comprehensive overview based on available information:
What Are Thunderhead Balloon Systems?
Thunderhead Balloon Systems are steerable, super-pressure balloon platforms capable of operating at high altitudes—typically between 50,000 and 92,000 feet—well above commercial air traffic and weather phenomena.
They leverage directional wind patterns to navigate and maintain persistence over specific areas of interest. These balloons are used individually or in constellations to support a wide range of missions, from scientific research to military applications.
Design and Components

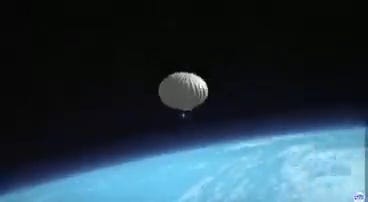

Balloon Structure: The core of the system is a pumpkin-shaped super-pressure balloon made of polyethylene. It comes in two main configurations:
Thunderhead 200 SPB: 64,000 cubic feet, with a maximum altitude of 50,000–60,000 feet.
Thunderhead 400 SPB: 400,000 cubic feet, reaching up to 92,000 feet.
Ballonet: Inside the main balloon is a smaller air-filled "ballonet" that acts as the steering mechanism. By pumping air into or out of the ballonet, the balloon adjusts its weight to ascend or descend, exploiting varying wind directions at different altitudes for navigation.
Gondola: Attached beneath the balloon, the gondola houses the payload, flight control systems, and solar panels. Payloads can weigh up to 125 pounds and are tailored to mission needs.
Power: Solar panels provide energy during the day and charge batteries for nighttime operations.
Safety Features: A parachute is typically attached between the balloon and gondola for controlled descent at mission end, and crush pads may be added to the gondola base to cushion landings.
How They Work
Navigation: Thunderhead balloons don’t have propulsion systems; instead, they navigate by changing altitude to catch favorable winds. Aerostar’s Thunderstorm software, powered by machine-learning wind models, predicts and adjusts flight paths in real time.
Launch: The balloons use helium for lift and can be launched from diverse locations—land, sea, or small airfields—thanks to minimal ground infrastructure needs. They transition from a teardrop shape during ascent to their pumpkin shape at float altitude.
Duration: Flights can last from days to months, with one balloon (HBAL 676) achieving 200 days aloft in 2024, demonstrating exceptional endurance.
Capabilities and Achievements
Long Duration: Aerostar has logged over 2 million stratospheric flight hours, with Thunderhead systems airborne daily since December 12, 2022. A single balloon recently flew 50,750 nautical miles over 200 days.
Global Reach: Thunderhead balloons have operated over all seven continents, crossing oceans like the Pacific and Atlantic to validate their navigation and endurance.
Persistence: They can linger over specific areas for weeks or months, as shown by a 28-day demonstration near Sioux Falls and wildfire monitoring missions in 2021.
Cost-Effectiveness: Compared to satellites or drones, Thunderhead offers affordable, rapid-deployment solutions for stratospheric missions.
Applications
Thunderhead Balloon Systems are versatile, supporting both civilian and defense purposes:
Scientific Research: Used by NASA for experiments, such as atmospheric sampling or spacecraft parachute testing (e.g., Boeing’s Starliner).
Environmental Monitoring: Capable of tracking wildfires (e.g., Dixie Fire, 2021) with thermal and visible imagery or monitoring methane emissions in the Permian Basin.
Communications: Serve as relays for 4G LTE (demonstrated with Abside Networks in 2022) or alternatives to satellites during crises like natural disasters.
Military and Intelligence: Employed for ISR (intelligence, surveillance, reconnaissance), electronic warfare, and radar sensing. The U.S. Army and Navy have tested them for advanced networking and hypersonic missile detection.
Commercial: Previously supported Google’s Project Loon for rural internet access before its 2021 cancellation.
Operational Highlights
200-Day Milestone: On October 14, 2024, HBAL 676, launched from New Mexico on March 28, 2024, marked 200 days aloft, showcasing Aerostar’s technological maturity.
Wildfire Monitoring: In 2021, a Thunderhead balloon traveled 16,000 miles over 70 days, station-seeking above four U.S. wildfires.
Military Use: The U.S. Army’s 1st Multi-Domain Effects Battalion has integrated Thunderhead into exercises like Balikatan (2022), and the Navy explored them in Unmanned Integrated Battle Problem 21.
Thunderstorm Software
Aerostar’s Thunderstorm interface enhances mission control:
Offers global command and control from any device.
Predicts flight paths, monitors performance, and displays sensor data in real time.
Uses machine learning to fuse weather data and historical flight patterns for precise navigation.
Advantages
Altitude: Operating above most threats, they’re hard to counter with traditional defenses.
Flexibility: Launchable from land or sea, adaptable to varied payloads.
Economy: Cheaper and faster to deploy than satellites or high-altitude drones.
Future Prospects
Aerostar continues to refine Thunderhead technology, focusing on extended endurance, enhanced navigation, and broader applications.
With ongoing military contracts and interest from agencies like the National Interagency Fire Center, these balloons are poised to play a growing role in aerospace and defense.
In summary, Thunderhead Balloon Systems represent a cutting-edge blend of simplicity and sophistication, turning balloons into powerful tools for modern challenges—whether connecting remote areas, watching wildfires, or bolstering national security.
Their ability to hover in the stratosphere for months at a fraction of the cost of alternatives makes them a standout innovation in today’s aerospace landscape.
